Working Principle

Collection Type

Carbon Monoxide (CO)

Sensor Type

Electrochemical

Alarm

Alarm Type

CO alarm, fault alarm, low battery warning

Alarm Volume

Over 85dB (A) at 3 m (9.84 ft)

Alarm Mode

Visual and audible alarm

Silence Function

Support

Silence Duration

About 45 seconds

Alarm Response Threshold

50 ppm: 60 min–90 min

100 ppm: 10 min–40 min

300 ppm: < 3 min

Basic Parameters

Display

LCD

Indicator Light

LED (red/yellow/green)

LED Instruction

Alarm: Red indicator
Fault: Yellow indicator
Power: Green indicator

Power Supply

Battery Life

10 years

Power Source

3V CR123A lithium battery (replaceable)

Operating Current

Monitoring Current: ≤20uA
Alarm Current: ≤10mA

Operating Ambient

Operating Environment

Indoor use only

Operating Temperature

–10°C to +40°C (+14°F to +104°F)

Operating Humidity

≤95% RH (non condensing)

Appearance

Color

White

Material

PC + ABS

Dimensions

116.4 mm × 71.7 mm × 28.3 mm (4.58″ × 2.82″ × 1.11″)

Weight

125 g

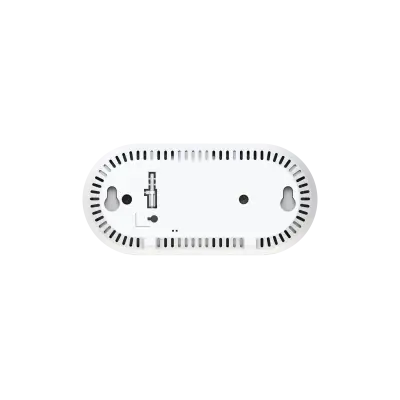

Installation

Wall Mount

Certification

Certifications

TÜV and CE listed

Compliance Standard

EN 50291-1:2018
