Hardware

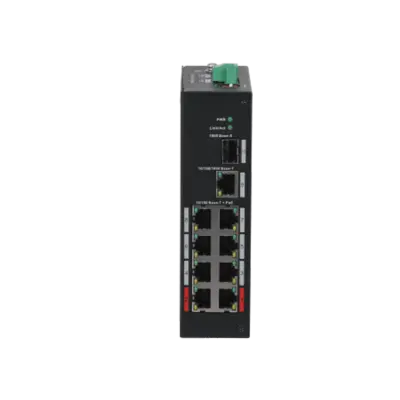

Data Transmission Port

Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)
Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink)
Port 10: 1 × SFP 1000 Mbps (uplink)

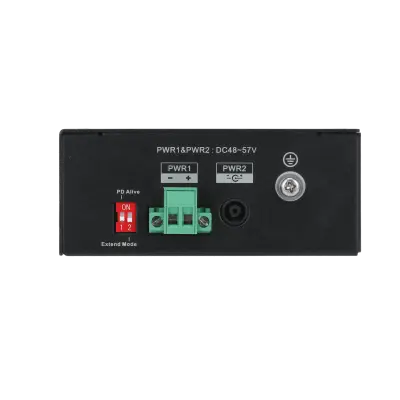

Power Supply

48 V–57 V DC

Operaing Temperature

–30 °C to +65 °C (-22 °F to +149 °F)

Operating Humidity

5% – 95% (RH)

Power Consumption

Idling: 3 W
Full load: 96 W

Performance

Capacity

7.6 Gbps

Packet Forwarding Rate

4.17 Mbps

Packet Buffer Memory

1 Mbit

MAC Table Size

8K

Communication Standard

IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3ab/IEEE 802.3z

PoE

PoE Standard

IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt

PoE Power

Port 1-2 ≤ 90 W, Port 3-8 ≤ 30W, total≤ 96 W

Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE

250 m (820.21 ft) long distance PoE transmission

General

Lightning Protection

Air discharge: 8 kV
Contact discharge: 6 kV

ESD Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.54 kg (1.03 lb)

Product Dimensions

150 mm × 100 mm × 42 mm (5.91″ × 3.94″ × 1.65″)
